1.The whole body adopts aluminum alloy frame, the screen uses 4 mm thick explosion-proof glass, and the machine is more durable.
2. Support 10 points IR touch ( 20 points touch option):Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.
3. 1920*1080 FHD / 3840*2160 UHD resolution: high definition LED screen, LG A+ grade 1.07B colour original panel, AWB TECH, suit for universal application scenarios.
4. 4mm explosion-proof tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively.
5. Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.

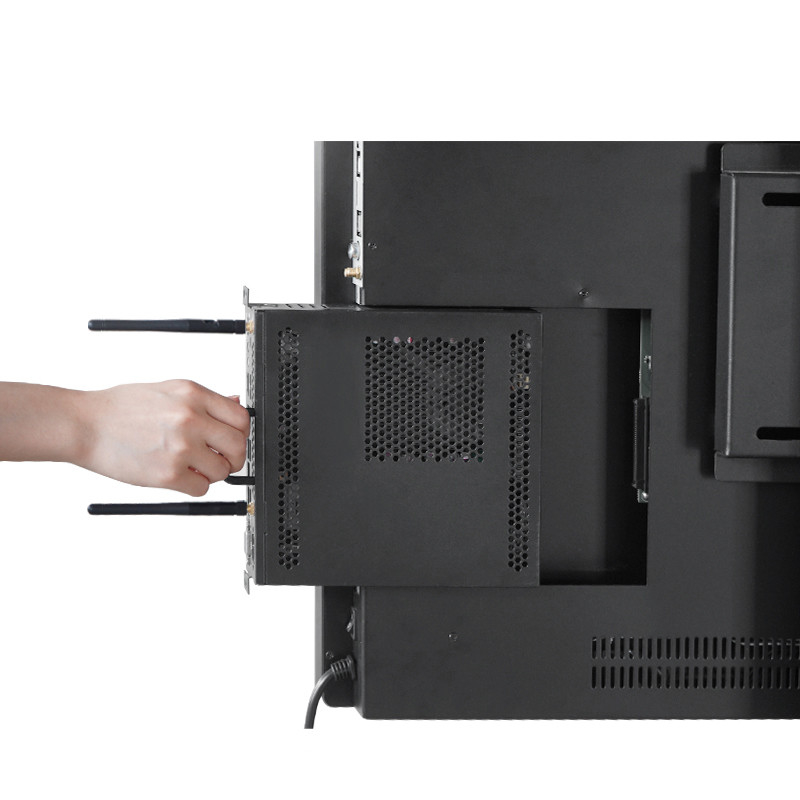

6. Dual core processor : windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
| Model | Model | YC650D |
| Type | 65inch | |
| Android OS | Android version | Android 13 |
| Chipset | T982 , Quad-core ARM Cortex-A55 | |
| GPU | Mali-G52 MP2(2EE) | |
| RAM&ROM | 4GB+32GB | |
| Touch Info. | Touch Technology | Infrared touch |
| Touch points | 20 points in Android; 40 points in Windows | |
| Input way | finger touch,or any opaque object | |
| Touch life times | Over 60,000,000 times | |
| Touch response speed | 6-8ms | |
| Display Panel Info. | Display Type | LED |
| Resolution | 3840*2160 UHD | |
| Ratio of display | 16:09 | |
| Best viewing angle | up:89 down:89 left:89 right:89 |
|
| Max. viewing angle | 178° | |
| Tempered glass(option) | Glass type | Anti-glare |
| Glass transmittance | 85% | |

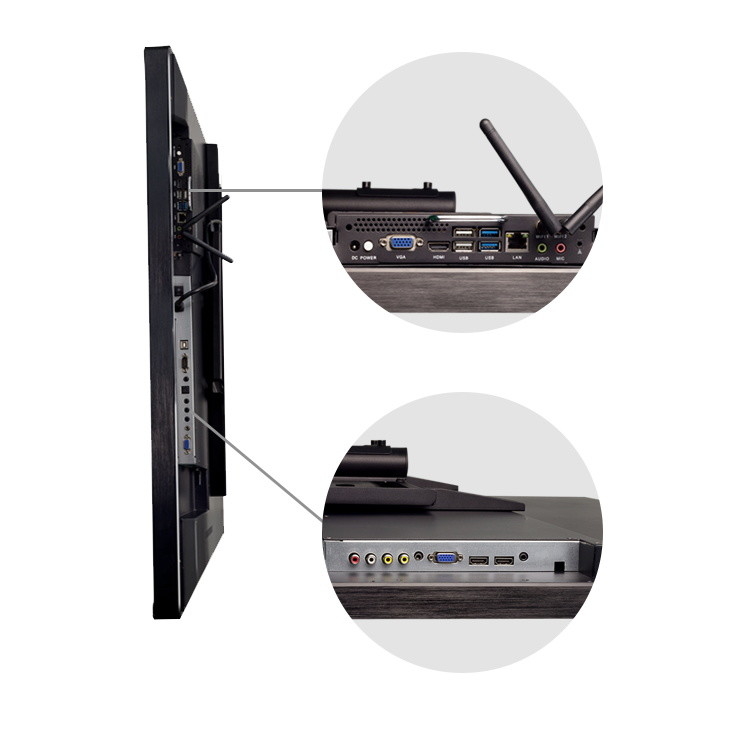

| Interface Info. |

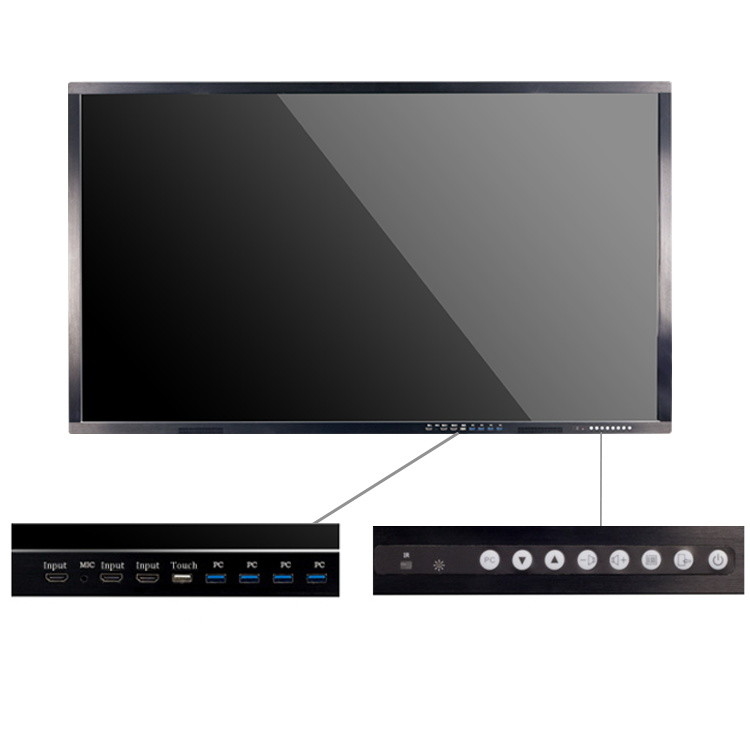

Front Buttons: | |
| Power on/off*1 | ||
| Front ports: | ||
| HDMI in*1,Touch USB*1;USB 2.0*2;Type C*1 | ||
| Back ports(Ⅰ): | ||
| Touch USB(HDMI1&HDMI2&VGA)*1;RJ45*1;AV IN*1;AV OUT*1;Earphone*1; | ||
| Back ports(Ⅱ): | ||
| SPDIF OUT*1;HDMI 2*1,HDMI 1*1;RS232 UART*1;Android USB 3.0*1;Andoird USB 2.0*1 | ||
| Wireless connection | Bluetooth | Bluetooth 5.0 |
| Network card | 100MB/S | |
| Other Info. | Power of display | 178W |
| Colors | 16.7M | |
| Life time | 50,000h | |
| Working voltage | 50-60HZ 100-250V | |
| Standby power | 3W | |
| Working temperature | 0~45℃ | |
| Storage temperature | -20℃~60℃ | |
| Working humidity environment | 5%-90% | |
| Power of speaker | 8Ω10W*2 | |
| Frame material | Alloy | |
| Package Info. | Package box | Honeycomb box |
| Size of product(mm) | 1487.7*862.7*61 | |
| Size of display(mm) | 1433*808 | |
| Size of package(mm) | 1630*1000*150 | |
| N.W.(KGS) | 39.5 | |
| G.W.(KGS) | 48.5 | |
| Accessories | User Manual | *1 |
| Warranty card | *1 | |
| Power cord | *1 | |
| Wall mounted bracket | *1 | |
| Write pen | *2 | |
| Pointer | *1 | |
| Enviromental Conditions | Working temperature | 0~45℃ |
| Storage temperature | -20℃~60℃ | |
| Working humidity environment | 5%-90% | |
Q:Can you provide OEM service for the all in one interactive flat panel?
A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?
A:We keep 3000-5000 units in Stock every single Month.
Q: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Panyu district,Guangzhou city, you are the mostly welcomed to visit our factory anytime.
Q: How is the quality of the product?
A: Our products have been strictly tested high quality by QC before shipping to customers.And we do own brand selling in domestic China market on line, our brand is “YCZX”.So quality is the first thing for us!
Q: Does the product only use for school?
A: Our products are widely used in Hospital, School, office etc.
Q: How can I trust your product quality?
A: We have more than 10 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS etc.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
Our products are sold all over the world, you can rest assured.
