Aluminum Alloy 85 Inch Smart Interactive Flat Panel For Education

Aluminum Alloy 85 Inch Smart Interactive Flat Panel For Education

  • High Light

    4GB RAM Interactive Flat Panel

    ,

    3840*2160 Interactive Flat Panel

  • Product Name
    85 Inch Smart Operation Interactive Flat Panel
  • Touch Points
    10 Or 20 Points
  • Material
    Aluminum Alloy
  • Screen Size
    85 Inch
  • Resolution
    3840*2160 4K
  • Glass Type
    4mm Tempered Glass
  • Display Type
    LED
  • Memory
    120GB SSD;(240GB SSD/1TB HDD Option)
  • RAM
    4GB RAM; (8GB/16GB Option)
  • CPU
    Intel I3; (intel I5/i7 Option)
  • Color
    Black
  • Place of Origin
    Guangdong,China
  • Brand Name
    YCZX
  • Certification
    CCC,FCC,CB,CE,ROHS,ISO9001,etc
  • Model Number
    Y860-JX
  • Minimum Order Quantity
    1 Piece
  • Price
    negotiable
  • Packaging Details
    high quality 3cm thickness honeycomb box(air shipment standard)
  • Delivery Time
    Shipped in 3 days after payment
  • Payment Terms
    L/C, D/A, T/T, Western Union,etc
  • Supply Ability
    2000 Piece/Pieces per Week

Aluminum Alloy 85 Inch Smart Interactive Flat Panel For Education

85 Inch Smart Operation Interactive Flat Panel For Education



Ⅰ. Description Of  Interactive Flat Panel


Guangzhou Yichuang Electronic Technology Co., Ltd., a 43-98 inch interactive teaching touch integrated machine independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one.We has an independent production plant, hardware accessories factory, 4 fully automatic production lines, and also obtained FCC, ISO 9001, ROSH, CE certificates. We are committed to strict quality control and thoughtful customer service. Whether you choose the current product from our catalog or seek engineering help for your application, you can always contact us at any time and welcome your purchase.

Ⅱ. Our Advantage

1.The whole body adopts aluminum alloy frame, the screen uses 4 mm thick explosion-proof glass, and the machine is more durable.
2. Using external removable OPS, the computer system can choose Android or Windows system, the product supports upgrading to dual system parallel.
3.The all-in-one machine supports multi-screen interactions such as mobile phones and notebooks to realize functions such as remote conferences, teaching, and mobile computer screen projection.
4. 2K high-definition screen, support 10 finger touch, 5 finger touch wake-up screen and split screen display and other functions, the screen can be upgraded to 4K high definition.
5. Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.

6.The machine contains electronic whiteboard software, supports handwritten font conversion into computer fonts, scan code to share files and other functions, and provides many teaching models to help you easily play in the teaching classroom.

Ⅲ. Specification



Screen size 32’’/42’’/50’’/55’’/60’’/65’’/70’’/75’’/86’’/98’’
CPU intel i3; (intel i5/i7 option)
RAM 4GB RAM; (8GB/16GB option)
Memory 120GB SSD;(240GB SSD/1TB HDD option)
Windows OS Windows 7/10 without license( license option)
(Android OS option) MSD 648 Quad core
Android Android 6.0
Touch Technology Infrared touch
Touch points 10/20 points
Input way finger touch,pen,or any opaque object
Touch life times Over 60,000,000 times
Touch response speed 8ms
Display Type LED
Resolution 1920*1080 FHD (3840*2160 UHD option)
Brightness 400(cd/m2)
Ratio of display 16:09
Best viewing angle up:89 down:89; left:89 right:89
Max. viewing angle 178°
Contrast ratio 5000:1TYP
Glass type 4mm tempered glass
Glass transmittance 95%

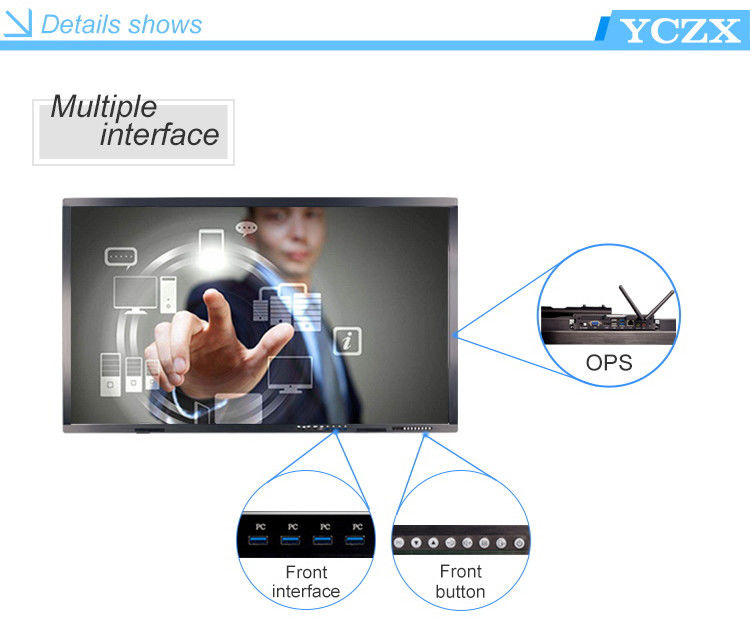

Front Buttons:
PC power button*1;Volume up*1;Volume down *1;Memu*1;Power on/off*1
Front ports:
HDMI*1;Touch out*1;MV in*1;USB2.0*3
Back ports(Ⅰ):
USB2.0 type B*1;USB2.0*2;HDMI*1;VGA*1
Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC)
DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1




Ⅳ. Details

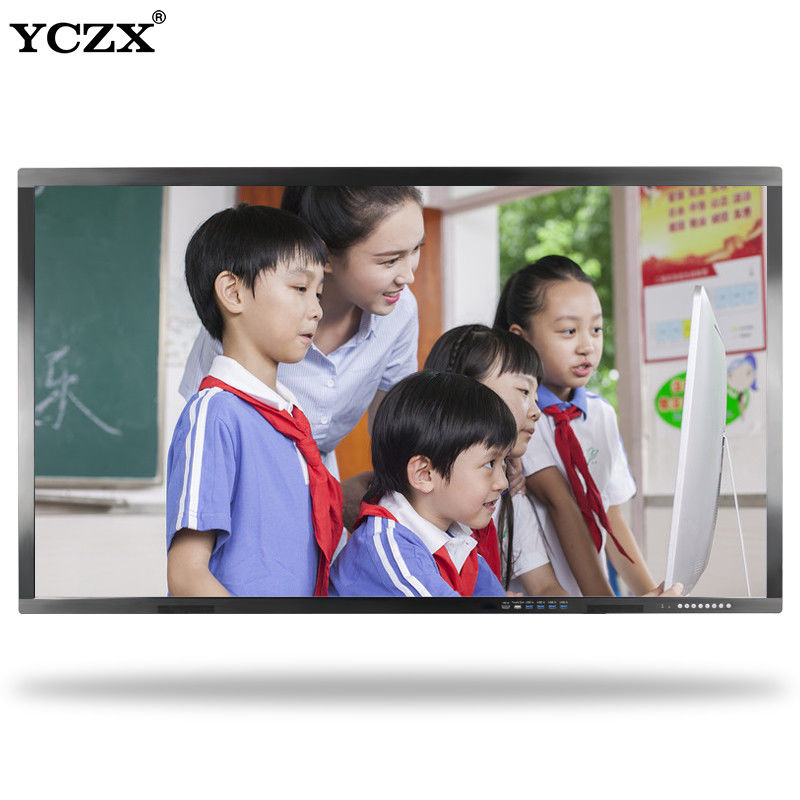

Aluminum Alloy 85 Inch Smart Interactive Flat Panel For Education 0

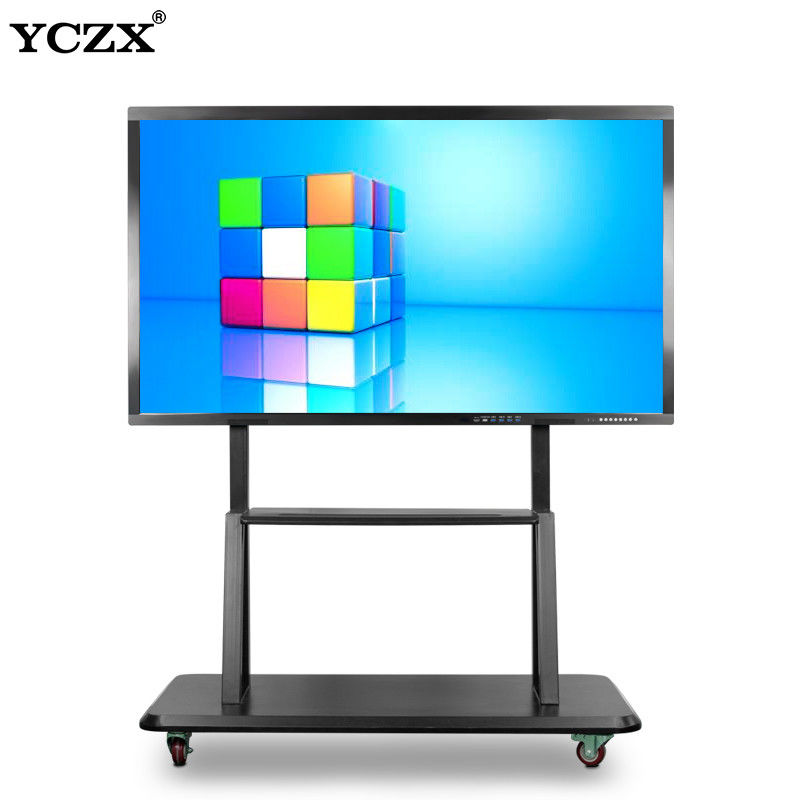

Aluminum Alloy 85 Inch Smart Interactive Flat Panel For Education 1




. Accessories




Accessories

Wall Mounted bracker *1
Write Pen *1
Pointer *1
Remote control *1
User Manual *1

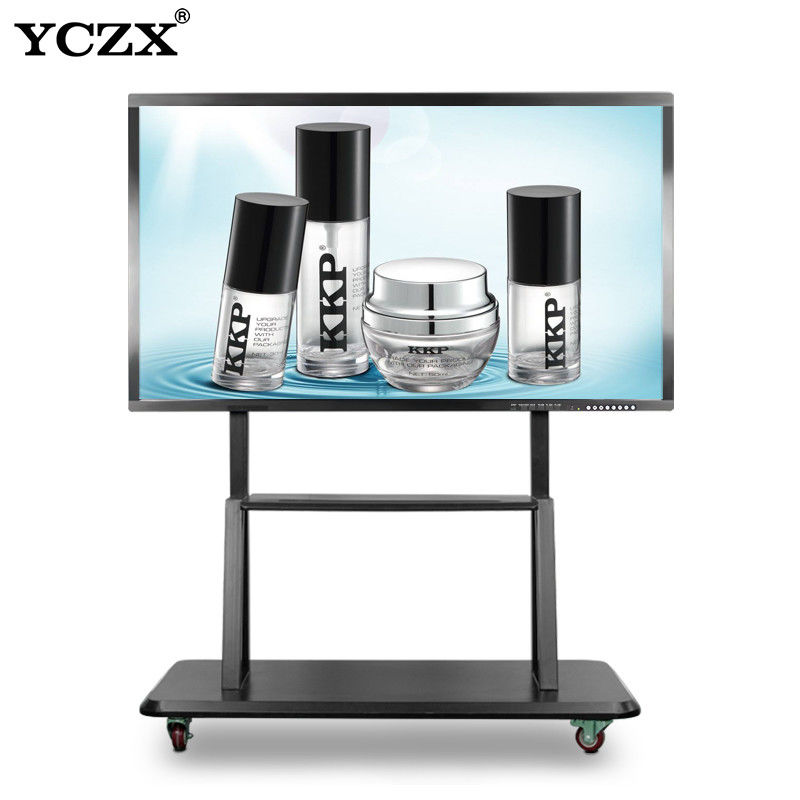

Aluminum Alloy 85 Inch Smart Interactive Flat Panel For Education 2
