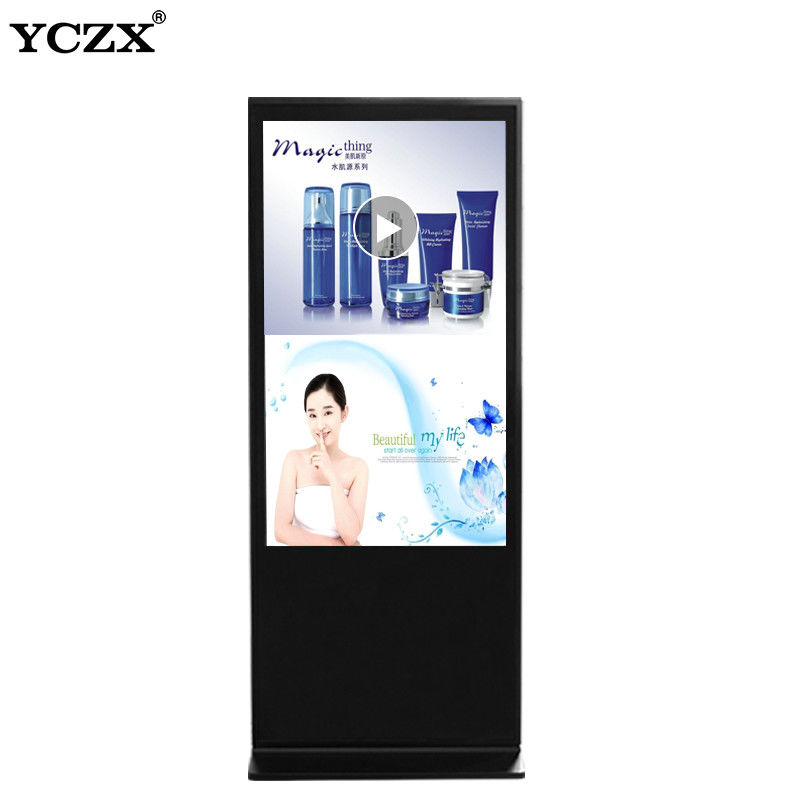

42 43 Inch Lcd Advertising Display Media Player Vedio Digital Signage Equipment
Ⅰ. Features

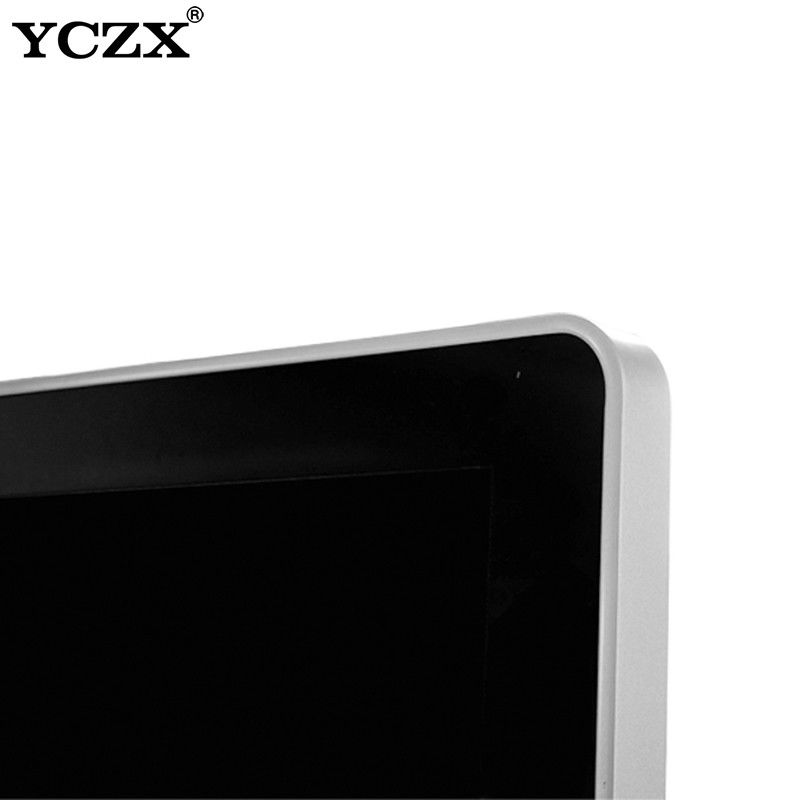

1. Slim body design
2. Computer terminal control
3. Self - developed infrared mulit touch technology

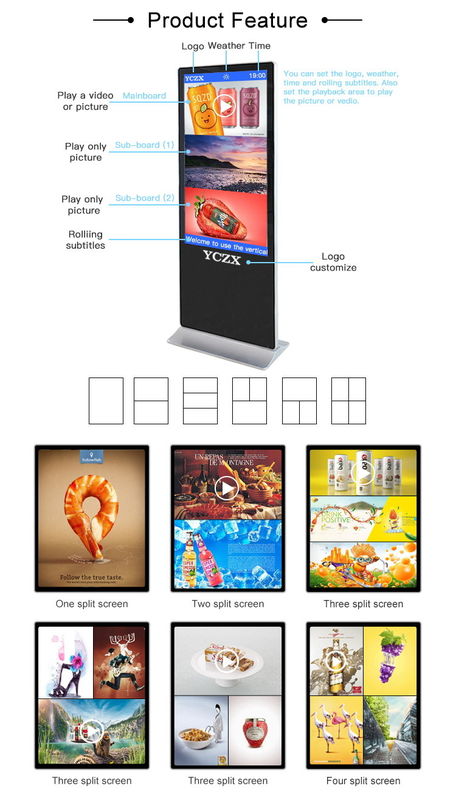

4. Support split screen playback
5. 1080 p FHD screen
Ⅱ. Specification
Guangzhou Yichuang Electronic Co., Ltd | ||||
Factory Address: 3rd/F, NO.C19 Building, Hua Chuang Animation Industry Park, JingShan Village, ShiJi Town, PanYu district, Guangzhou, GuangDong province, China | ||||
Contact:Linda Phone No.:+86 13510609058 Email:linda@yichuangscreen.com | ||||
Advertising Player Specification | ||||
Model | Model No. | YC430-GG | ||
Type | 43inch Advertising Player | |||
Operating System Info. | Android OS | Optional 1(High-end) | Optional 2(Middle-end) | Optional 3(Low-end) |
Android 6.0 | Android 4.4 | Android 4.2 | ||
CPU | RK3288 | Allwinner A83T | Allwinner A20 | |
RAM | 2GB | 1GB | 512MB | |
Memory | 16GB | 16GB | 8GB | |
Touch function (Optional) |
Touch Technology | Infrared touch | N/A | N/A |
Touch points | 10 points | |||
Input way | finger touch,or any opaque object | |||
Touch life times | Over 60,000,000 times | |||
Touch response speed | 6~8ms | |||
Display Panel Info. | Display Type | LED | ||
Display Colors | 1.07 Billion colors | |||
Resolution | 3840*2160 UHD | |||
Ratio of display | 16:9 | |||
Wide Viewing Angle | 178° | |||
Tempered glass | Glass thicknesse | 4mm tempered glass | ||
Glass transmittance | 95% | |||
Interface Info. |
DC input | x1,(12V; 3.0A) | ||
HDMI INPUT | x1 | |||
RJ45 | x1 | |||
Earphone | x1,3.5mm | |||
USB OTG | x1 | |||
USB HOST | x1 | |||
TF Card | x1,(Max. support extend : 64GB(High-end), 32GB(Middle-end&Low-end)) | |||
Other Info. | Input Power | ? | ||
Working hours | 7x24 | |||
Working voltage | 50-60HZ 100-250V | |||
Working temperature | -20℃~60℃ | |||
Storage temperature | -30℃~70℃ | |||
Working humidity environment | 80% | |||
Power of speaker | 8Ω 12.5W*2 | |||
Frame material | Alloy | |||
Accessories | Remote control | x1 | ||
Key | x1 | |||
Antenna | x1(Standard comes with High-end and Middle-end model) | |||
User Manual | x1 | |||
Packaing | Size of product(mm) | 1850*910*42 | ||
Size of display(mm) | 1433*808 | |||
Size of package(mm) | 2000*1050*180 | |||
N.W.(KGS) | 71.70 | |||
G.W.(KGS) | 85.50 |
Ⅲ. advertising display Function
1. Support and play med on USB memory, plug-and-play, easy to change advertisements.
2. Support most video and audio formats: MPEG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,WMV,RM,RMVB etc.
3. Support various kinds of play mode: single cycle, list cycle and all repeating.
4.Support picture move-transition, scaling-transition, slide-transition.
5. Support stereo sound system as well as mono sound.
6. Support multiple OSD language, Chinese, English, French, Spanish etc.
7. Support scrolling marquee displaying.
8. Support perpetual calendar displaying.
Ⅳ. Product description
For the convenience of managing different numbers of advertising machines, we offer two different models. The first is a stand-alone advertising machine that is suitable for use with a small number of advertising machines in a centralized area. It only needs to use a USB flash drive to change the advertising content. The second is the Internet terminal control version of the advertising machine. It is suitable for large-scale and large-volume use of advertising machines. The advertising machine can be managed using a mobile phone or a network terminal to facilitate the simultaneous replacement of advertising content.
The advertising player is available in a variety of sizes from 43 / 48 / 55 / 58 / 65 inches. In addition, we support product customization, such as upgrade configuration, custom logo, design and so on. Everything is only for a better experience for you.
Ⅴ. Application scenario
stations, supermarket, star-rated hotels, restaurants, travel agencies, pharmacy.Banks, negotiable securities, funds, insurance companies, pawnshops; hospital, schools;
Ⅵ. Details
Packaging Details
EPE protected,nati-pressure,anti-shock, to ensure the safety.
Compress volume reasonably, weight reduced, to save freight for clients.
High-quality thick wooden box, anti-pressure,anti shock,moistureproof, to effectively prevent the delivery damage transport.
