i3 i5 i7 Nano Interactive Blackboard With LCD Multi Points Touch Screen

i3 i5 i7 Nano Interactive Blackboard With LCD Multi Points Touch Screen

  • High Light

    smart blackboard

    ,

    touch screen blackboard

  • Product Name
    Teaching Smart Interactive Blackboard
  • Application
    School Teaching, Meeting,etc
  • Touch Type
    Capacitive Touch
  • Touch Point
    10 Points
  • OS
    Dual System(android+win7/10)
  • Input Way
    Finger Touch, Or Capacitive Stylus
  • Display Screen Type
    LED Display
  • Resolution
    1920*1080 FHD (3840*2160 UHD Option)
  • Place of Origin
    Guangdong,China
  • Brand Name
    YCZX
  • Certification
    FCC,CB,CE,ROHS,ISO9001,etc
  • Model Number
    YC650E
  • Minimum Order Quantity
    1 Piece
  • Price
    $2,999.00-$3,299.00
  • Packaging Details
    high quality 3cm thickness honeycomb box(air shipment standard)
  • Delivery Time
    Shipped in 3 days after payment
  • Payment Terms
    L/C, D/A, T/T, Western Union, MoneyGram,etc
  • Supply Ability
    2000 Piece/Pieces per Week

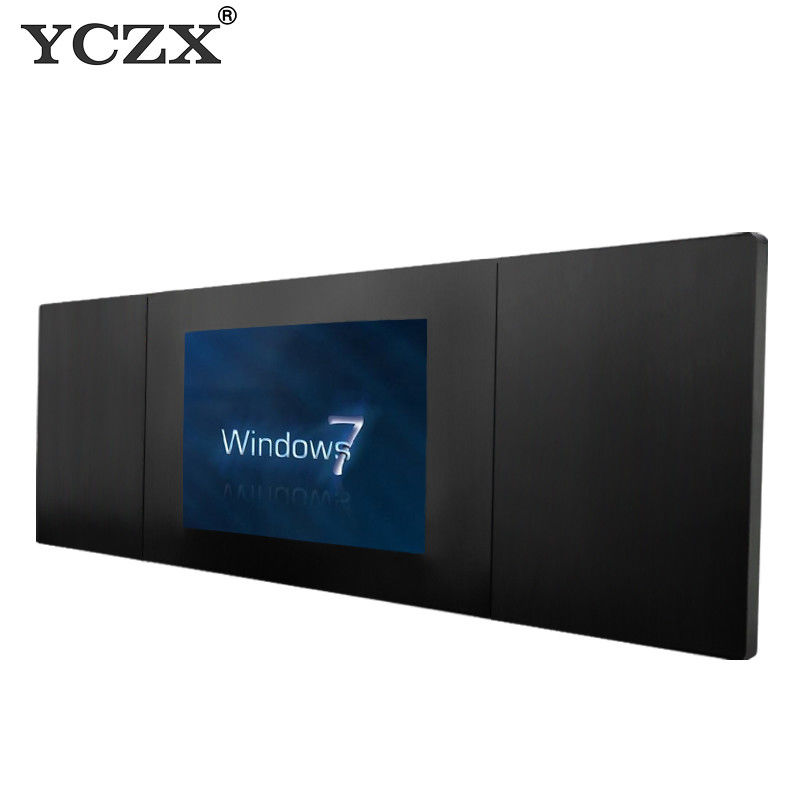

i3 i5 i7 Nano Interactive Blackboard With LCD Multi Points Touch Screen

I3 I5 I7 Interactive Touch Screen Lcd Whiteboard Nano Blackboard



​​Ⅰ. Description Of Interactive Blackboard


Multimedia teaching/conference all-in-one adopts advanced Multi touch interactive technology, It is a Multi function man-machine interactive terminal which uses the screen touch operation, Integrated interactive whiteboard, Tablet, Audio, computer, Internet multimedia playback and other functions.


. Our Advantage



i3 i5 i7 Nano Interactive Blackboard With LCD Multi Points Touch Screen 0


1. All in one:computer, whiteboard, projector, TV, speaker, advertising machine,multifunction in one equipment.
2. Support 10 points IR touch ( 20 points touch option):Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.
3. 1920*1080 FHD / 3840*2160 UHD resolution: high definition LED screen, LG A+ grade 1.07B colour original panel, AWB TECH, suit for universal application scenarios.
4. 4mm explosion-proof tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively.
5. Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.
6. Dual core processor : windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
7. Fast response speed: 0.8ms fluent writing and demonstration. More convenient courseware management. Accurate, fast touch, no delay.
8. Intelligent operation: Freely write, annotate and screen shot. Automatically recognize input channel. Intelligent eye protection. Light sensor with automatic brightness control. Energy save & intelligent awake.
9. Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
10. Screen-mirroring with android phone, iphone, ipad, computer,etc.
11. Supporting connecting WIFI and sharing hot spots at the same time. Comes with double WIFI, common module and dual frequency. 5G signal high-speed access, while sharing hot spots.



i3 i5 i7 Nano Interactive Blackboard With LCD Multi Points Touch Screen 1



Ⅲ. Details

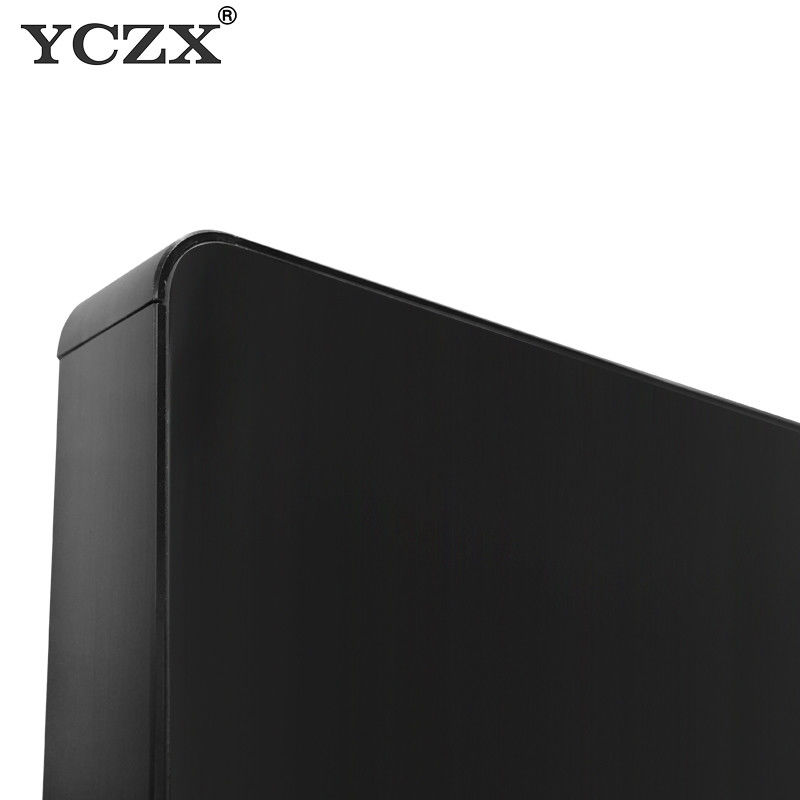

i3 i5 i7 Nano Interactive Blackboard With LCD Multi Points Touch Screen 2



Ⅳ. Specification



Specification
Model Model YC860-JX
Type 86inch




Operating System Info.

CPU intel i3; (intel i5/i7 option)
RAM 4GB RAM; (8GB/16GB option)
Memory 120GB SSD;(240GB SSD/1TB HDD option)
Windows OS Windows 7/10 without license( license option)
(Android OS option) MSD 648 Quad core




Touch Info.

Touch Technology Infrared touch
Touch points 10 / 20 points
Input way finger touch,or any opaque object
Touch life times Over 60,000,000 times
Touch response speed 8ms





Display Panel Info.

Display Type LED
Resolution 1920*1080 FHD (3840*2160 UHD option)
Brightness 400(cd/m2)
Ratio of display 16:09
Best viewing angle up:89 down:89; left:89 right:89
Max. viewing angle 178°
Contrast ratio 5000:1TYP
Tempered glass(option) Glass type 4mm tempered glass
Glass transmittance 95%





Interface Info.

Front Buttons:
PC power button*1;Volume up*1;Volume down *1;Memu*1;Power on/off*1

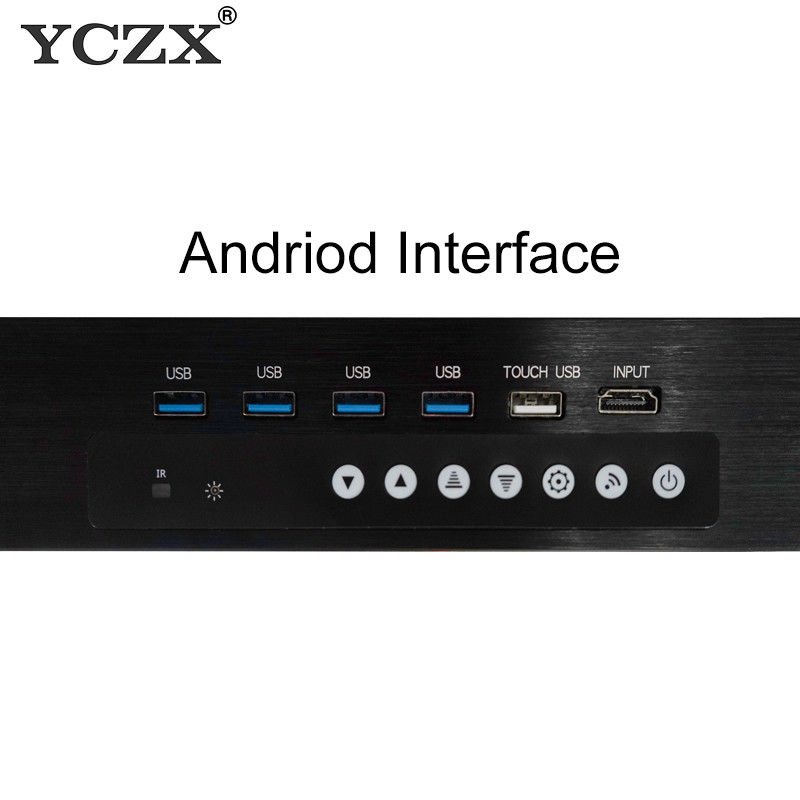

Front ports:
HDMI*1;Touch out*1;MV in*1;USB2.0*3

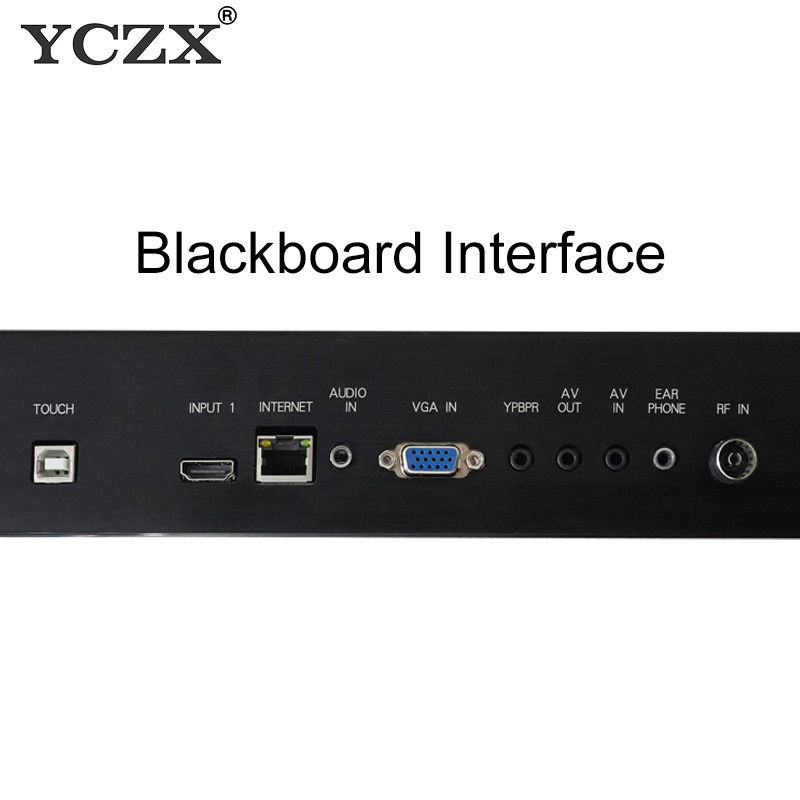

Back ports(Ⅰ):
USB2.0 type B*1;USB2.0*2;HDMI*1;VGA*1
Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC)
DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1






Other Info.

Power of display 178W
Colors 16.7M
Life time 50,000h
Working voltage 50-60HZ 100-250V
Standby power 3W
Working temperature 0~45℃
Storage temperature -20℃~60℃
Working humidity 5%-90%
Power of speaker 8Ω10W*2
Frame material Alloy

i3 i5 i7 Nano Interactive Blackboard With LCD Multi Points Touch Screen 3i3 i5 i7 Nano Interactive Blackboard With LCD Multi Points Touch Screen 4

Ⅴ. Application


Company Meeting, Training Course, Family Entertainment, Work Discussion, Teaching Infants, Video Conference, Commercial Display, Multi-Person Conference, Product Description, Show Demonstration, Medical Consultation, Production Projection, Media Broadcast, Corporate Presentation, Exhibition Center, Speech, Etc.



Ⅵ. Accessories



i3 i5 i7 Nano Interactive Blackboard With LCD Multi Points Touch Screen 5
