4K UHD Infrared Touch Screen Monitor , 75 Inch Interactive Flat Panel

4K UHD Infrared Touch Screen Monitor , 75 Inch Interactive Flat Panel

  • High Light

    multi touch screen monitor

    ,

    interactive monitor displays

  • Type
    Infrared Touch Screen Monitor
  • Material
    Aluminum Alloy Frame
  • Touch Points
    10 Or 20 Points
  • Warranty
    12 Months
  • Function
    Teaching, Meeting, Query,TV, Advertising,etc
  • Certificates
    CE ROHS ISO9001
  • Memory
    120GB SSD;(240GB SSD/1TB HDD Option)
  • Glass Type
    4mm Tempered Glass
  • Place of Origin
    CHINA
  • Brand Name
    YCZX
  • Certification
    CCC,CE,ROHS, ISO9001,etc
  • Model Number
    YC750-JX
  • Minimum Order Quantity
    1set
  • Price
    $2109 - $2219 /set
  • Packaging Details
    high quality 3mm thickness honecomb box(air shipment standard)
  • Delivery Time
    shipment 3 Days after payment
  • Payment Terms
    L/C, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10000 sets per month

4K UHD Infrared Touch Screen Monitor , 75 Inch Interactive Flat Panel

75 Inch UHD 4k Touch Screen Monitor Interactive Flat Panel All In One Pc For Classroom And Meeting Room



. Description Of Infrared Touch Screen Monitor


Multimedia teaching/conference all-in-one adopts advanced Multi touch interactive technology, It is a Multi function man-machine interactive terminal which uses the screen touch operation, Integrated interactive whiteboard, Tablet, Audio, computer, Internet multimedia playback and other functions.


. Our Advantage


1. All in one:computer, whiteboard, projector, TV, speaker, advertising machine,multifunction in one equipment.
2. Support 10 points IR touch ( 20 points touch option):Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.
3. 1920*1080 FHD / 3840*2160 UHD resolution: high definition LED screen, LG A+ grade 1.07B colour original panel, AWB TECH, suit for universal application scenarios.
4. 4mm explosion-proof tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively.
5. Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.
6. Dual core processor : windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
7. Fast response speed: 0.8ms fluent writing and demonstration. More convenient courseware management. Accurate, fast touch, no delay.
8. Intelligent operation: Freely write, annotate and screen shot. Automatically recognize input channel. Intelligent eye protection. Light sensor with automatic brightness control. Energy save & intelligent awake.
9. Intelligent writing & Touch control: the writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
10. Screen-mirroring with android phone, iphone, ipad, computer,etc.
11. Supporting connecting WIFI and sharing hot spots at the same time. Comes with double WIFI, common module and dual frequency. 5G signal high-speed access, while sharing hot spots.

4K UHD Infrared Touch Screen Monitor , 75 Inch Interactive Flat Panel 0

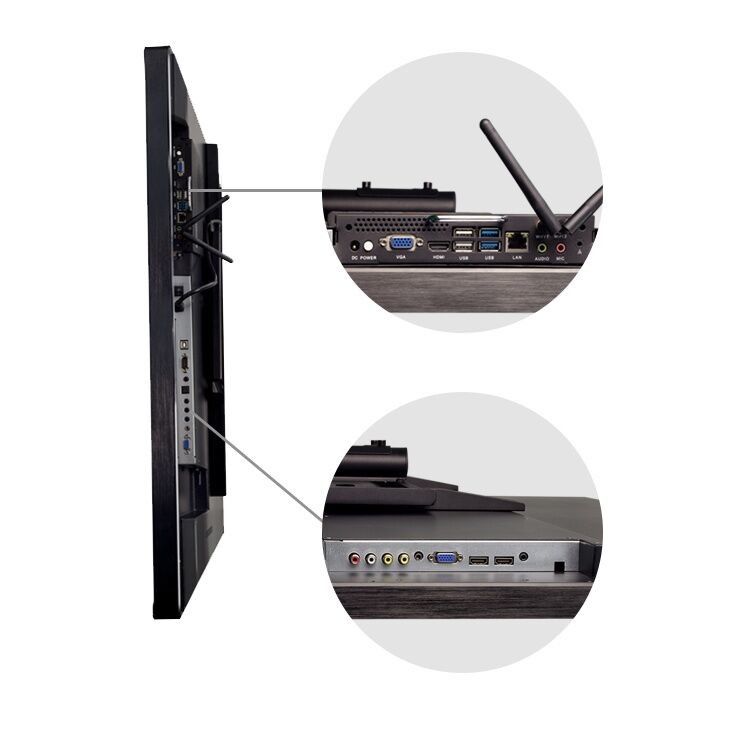

Ⅲ. Details

4K UHD Infrared Touch Screen Monitor , 75 Inch Interactive Flat Panel 1

Ⅳ. Specification

Screen size 32’’/42’’/50’’/55’’/60’’/65’’/70’’/75’’/86’’/98’’
CPU intel i3; (intel i5/i7 option)
RAM 4GB RAM; (8GB/16GB option)
Memory 120GB SSD;(240GB SSD/1TB HDD option)
Windows OS Windows 7/10 without license( license option)
(Android OS option) MSD 648 Quad core
Android Android 6.0
Touch Technology Infrared touch
Touch points 10/20 points
Input way finger touch,pen,or any opaque object
Touch life times Over 60,000,000 times
Touch response speed 8ms
Display Type LED
Resolution 1920*1080 FHD (3840*2160 UHD option)
Brightness 400(cd/m2)
Ratio of display 16:09
Best viewing angle up:89 down:89; left:89 right:89
Max. viewing angle 178°
Contrast ratio 5000:1TYP
Glass type 4mm tempered glass
Glass transmittance 95%

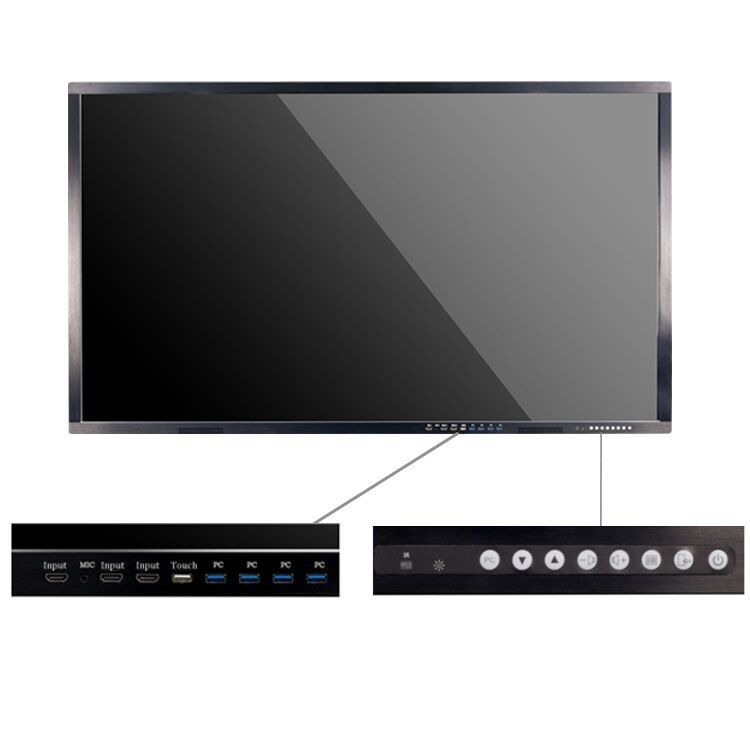

Front Buttons:
PC power button*1;Volume up*1;Volume down *1;Memu*1;Power on/off*1
Front ports:
HDMI*1;Touch out*1;MV in*1;USB2.0*3
Back ports(Ⅰ):
USB2.0 type B*1;USB2.0*2;HDMI*1;VGA*1
Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC)
DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1
Power of display 178W
Colors 16.7M
Life time 60,000h
Working voltage 50-60HZ 100-250V
Standby power 3W
Working temperature 0~45℃
Storage temperature -20℃~60℃
Working humidity 5%-90%
Power of speaker 8Ω10W*2
Frame material Alloy

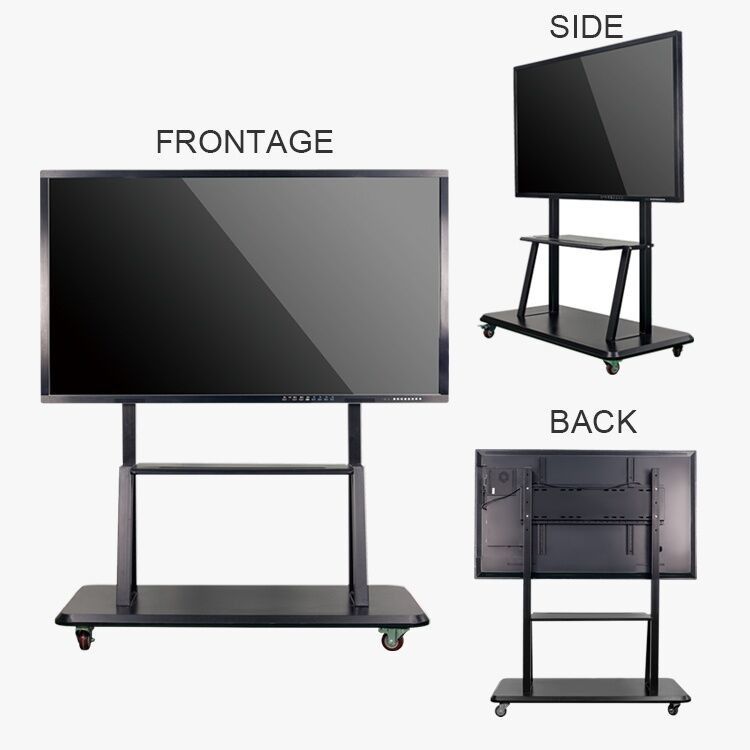

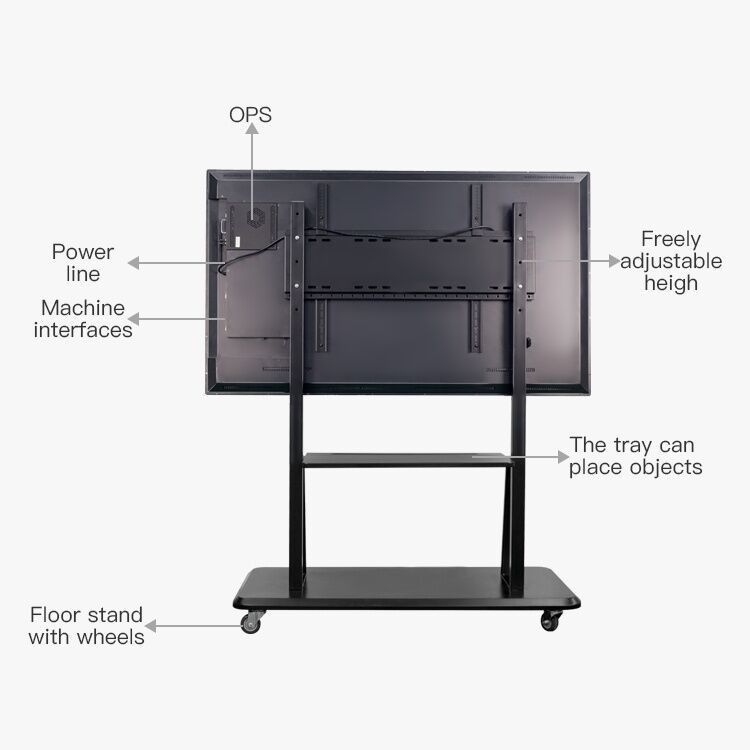

Accessories Wall bracket/movable floor stand/pen/remote control/WIFI antenna
Warranty 12 months
Package 3cm thickness Honeycomb box

4K UHD Infrared Touch Screen Monitor , 75 Inch Interactive Flat Panel 2

Ⅴ. Application


Company Meeting, Training Course, Family Entertainment, Work Discussion, Teaching Infants, Video Conference, Commercial Display, Multi-Person Conference, Product Description, Show Demonstration, Medical Consultation, Production Projection, Media Broadcast, Corporate Presentation, Exhibition Center, Speech, Etc.


Ⅵ. Accessories






Accessories

Wall Mounted bracker *1
Write Pen *1
Pointer *1
Remote control *1
User Manual *1
