|Place of Origin:||Guangdong,China|
|Minimum Order Quantity:||1 Piece|
|Packaging Details:||EPE protected,nati-pressure,anti-shock;High-quality thick wooden box , anti-pressure,anti shock,moistureproof|
|Delivery Time:||Shipped in 3 days after payment|
|Payment Terms:||L/C, D/A, T/T, Western Union, MoneyGram,etc|
|Supply Ability:||200 Set/Sets per Day|
|YC650L Type: TFT Application:||Indoor||Viewing Angle:||178|
|Pixel Pitch:||3mm*3mm||Contrast Ratio:||1400:1|
|Input Voltage:||AC110-240V||Color:||Black / White/ Silver Color|
|Material:||Aluminum Case+Tempered Glass Panel||OS:||Android6.0.1/Windows|
|Installation:||Floor||Optional Function:||Remote Control|
|Touch Screen:||IR Touch||Video:||Hd 1080p Videos|
|Resolution:||1920x1080(FHD) Or 4K||Type:||TFT|
|Warranty:||1 Year||After-sales Service Provided:||Video Technical Support, Free Spare Parts, Online Support|
touch screen digital signage,
digital kiosk display

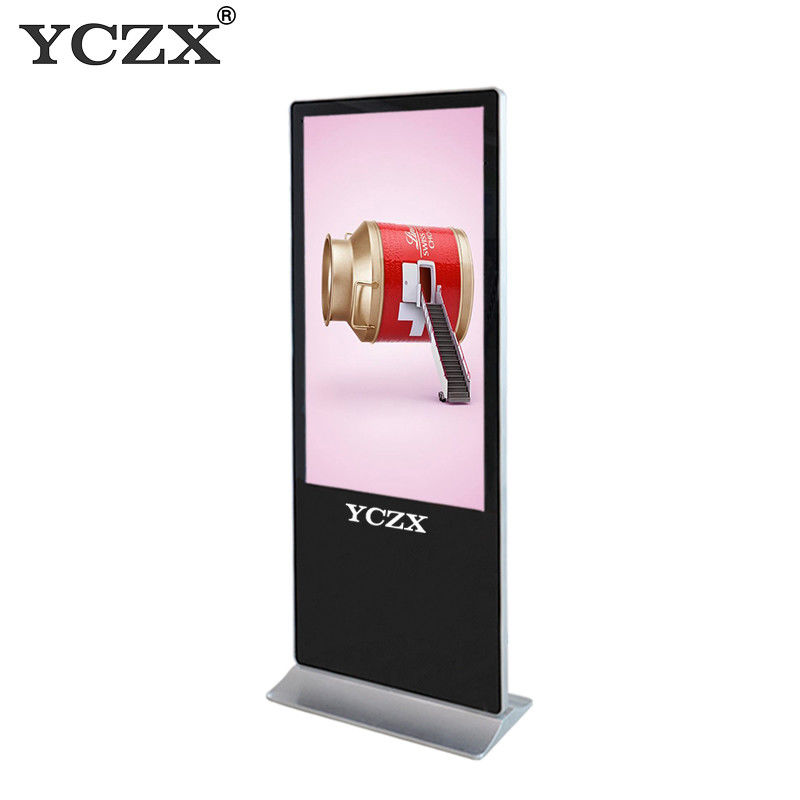

4cm Ultra Thin Touch Screen Kiosk 1980*1020 HD With Aluminum Alloy Frame
Ⅰ. Product description
The standing touch andoid advertising digital kiosk display is designed with an aluminum alloy frame and a 40mm slim body. It is equipped with a 2k high-definition screen for clearer advertising content. It has the functions of intelligent broadcast, time switch and so on, which makes the advertisement play more worry-free.
For the convenience of managing different numbers of advertising machines, we offer two different models. The first is a stand-alone advertising machine that is suitable for use with a small number of advertising machines in a centralized area. It only needs to use a USB flash drive to change the advertising content. The second is the Internet terminal control version of the advertising machine. It is suitable for large-scale and large-volume use of advertising machines. The advertising machine can be managed using a mobile phone or a network terminal to facilitate the simultaneous replacement of advertising content.
The advertising machine is available in a variety of sizes from 43/48/55/58/65 inches. In addition, we support product customization, such as upgrade configuration, custom logo, design and so on. Everything is only for a better experience for you.

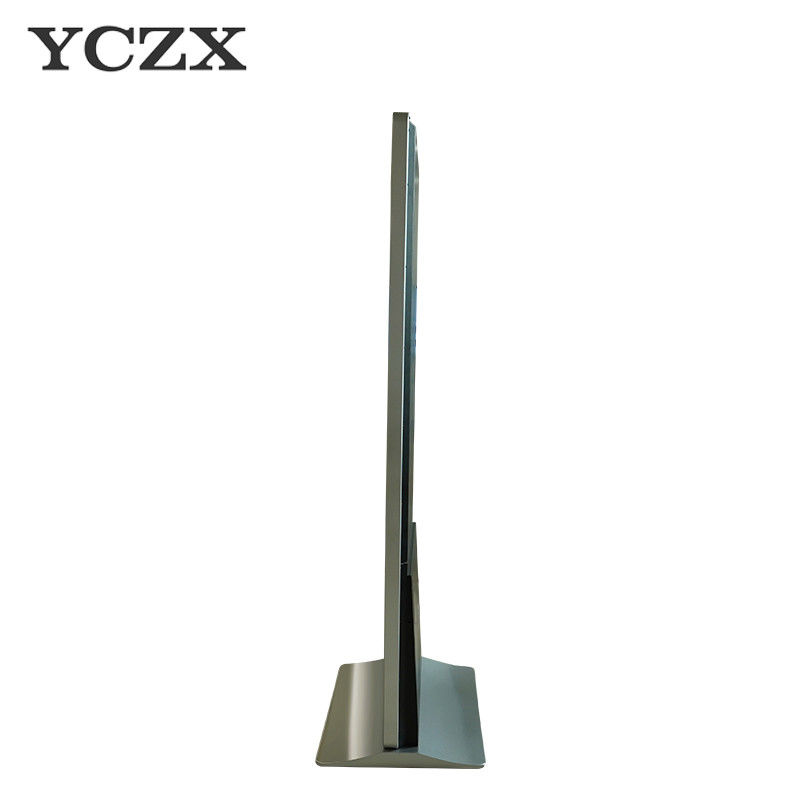

1. Ultra-thin body design
2. All-aluminum alloy panel structure, anodized surface technology, simple and stylish appearance
3. Self-developed 10-point infrared touch technology
4. Equipped with a powerful and easy-to-use information distribution system to remotely monitor device status (optional)
5. Independent modular structure design, compatible with Android platfore
Ⅲ. Advertising display Function
1. Integrated single advertising system, embedded with HD decoder chip,
2. support playing HD video, up to 1080p.
3. Support to rotate video program.
4. Support set the on/off automatically(up to 5 time intervals).
5. Support to split screen into several smaller window, playing different advertisement.
6. Support to continue displaying when suffered from power failure.
7. Support to display station caption on the corner of screen.
8. Support to copy and delete media files on USB storage.
9. Support to generate working records automatically.
10. Support to set different sound volume during different time period.
11. Support and play med on USB memory, plug-and-play, easy to change advertisements.
12. Support most video and audio formats: MPEG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,WMV,RM,RMVB etc.
13. Support various kinds of play mode: single cycle, list cycle and all repeating.
14. Support picture move-transition, scaling-transition, slide-transition.
15. Support stereo sound system as well as mono sound.
16. Support multiple OSD language, Chinese, English, French, Spanish etc.
17. Support scrolling marquee displaying.
18. Support perpetual calendar displaying.
|Guangzhou Yichuang Electronic Co., Ltd|
|Factory Address: 3rd/F, NO.C19 Building, Hua Chuang Animation Industry Park, JingShan Village, ShiJi Town, PanYu district, Guangzhou, GuangDong province, China|
|Contact:Linda Phone No.:+86 13510609058 Email:firstname.lastname@example.org|
|Advertising Player Specification|
|Features||1. Ultra-thin body design
2. All aluminum alloy panel structure, anodized surface technology, simple and fashionable appearance
3. Self-developed 10-point infrared touch technology
4. Equipped with powerful and easy-to-use information release system to realize remote monitoring equipment status (optional)
5. Independent modular structure design, compatible with Android platform
|Type||65inch Advertising Player|
|Operating System Info.||Android OS||Optional 1(High-end)||Optional 2(Middle-end)||Optional 3(Low-end)|
|Android 6.0||Android 4.4||Android 4.2|
|CPU||RK3288||Allwinner A83T||Allwinner A20|
|Touch Technology||Infrared touch||N/A||N/A|
|Touch points||10 points|
|Input way||finger touch,or any opaque object|
|Touch life times||Over 60,000,000 times|
|Touch response speed||6~8ms|
|Display Panel Info.||Display Type||LED|
|Display Colors||1.07 Billion colors|
|Ratio of display||16:9|
|Wide Viewing Angle||178°|
|Tempered glass||Glass thicknesse||4mm tempered glass|
|DC input||x1,(12V; 3.0A)|
|TF Card||x1,(Max. support extend : 64GB(High-end), 32GB(Middle-end&Low-end))|
|Other Info.||Input Power||?|
|Working voltage||50-60HZ 100-250V|
|Working humidity environment||80%|
|Power of speaker||8Ω 12.5W*2|
|Antenna||x1(Standard comes with High-end and Middle-end model)|
|Packaing||Size of product(mm)||1850*910*42|
|Size of display(mm)||1433*808|
|Size of package(mm)||2000*1050*180|
Ⅴ. Application scenario
Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
EPE protected,nati-pressure,anti-shock, to ensure the safety.
Compress volume reasonably, weight reduced, to save freight for clients.
High-quality thick wooden box, anti-pressure,anti shock,moistureproof, to effectively prevent the delivery damage transport.
